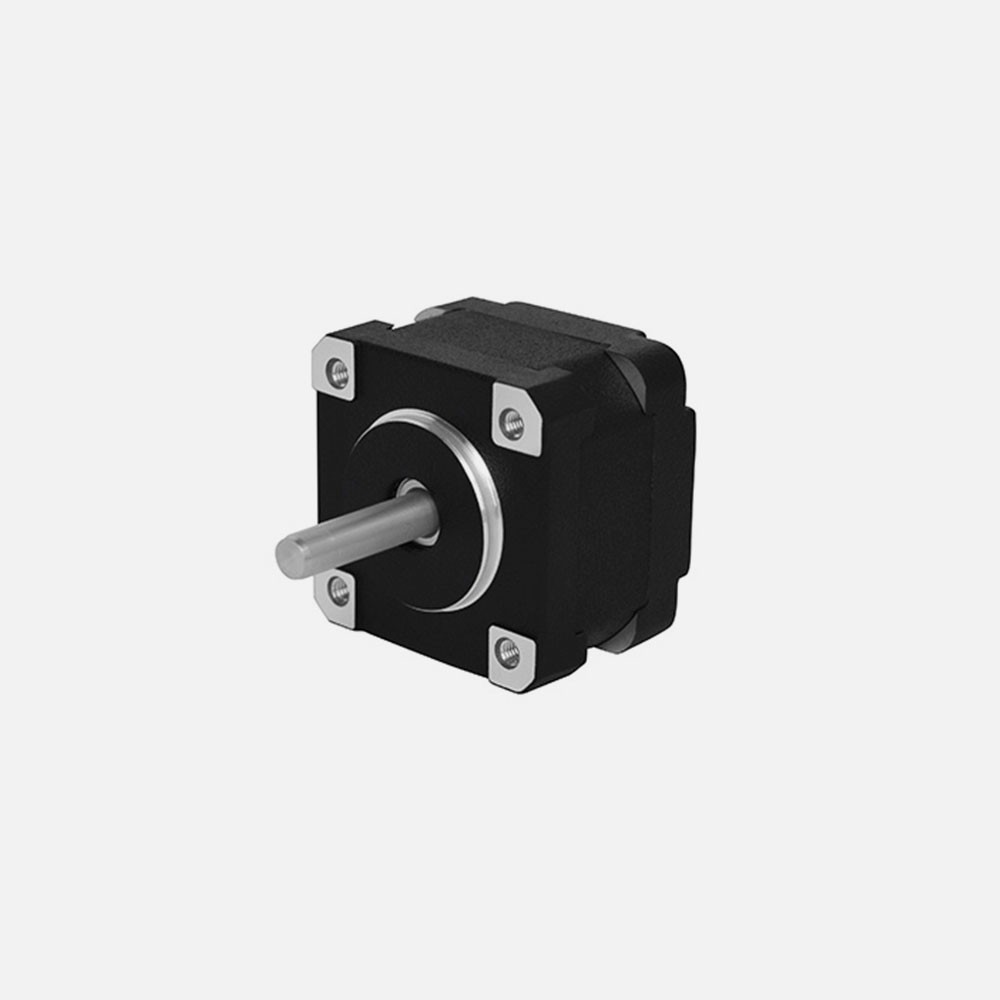

HYBRID STEPPER MOTOR

35HSD Series (1.8 degree)

PERFORMANCE DATA


Part NumberLength
(mm)
Step Angle
Deg
Resistance
(Ω)
Current
(A)
VoltageHolding Torque
(N.cm)
Lead Wires
/pins
Rotor Inetia
(g.cm²)
Weight
(kg)
35HS020DF400X-01201.8°40.83.254100.11
35HS022DE10JX-01221.8°100.5558110.12
35HS025DF10JX-01251.8°100.4454120.13
35HS027DS80JX-01271.8°800.1612.886140.15
35HS033DF24JX-01331.8°240.512184200.18
35HS034DS70JX-01341.8°700.1756200.18
35HS052DF680X-01521.8°6.80.85.4425450

0.28


OUTLINE MAP
