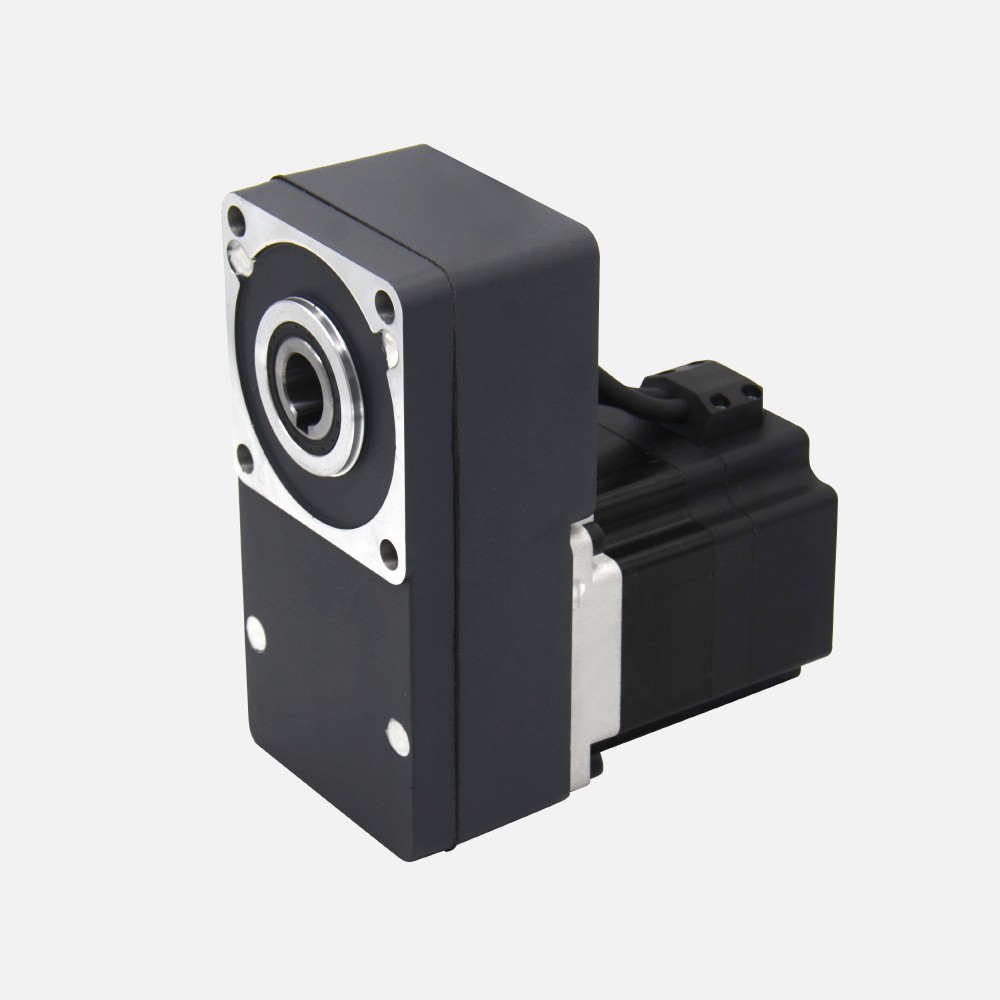

BLDC GEARED MOTOR
| PERFORMANCE DATA |
| Model | Ploes | Rated Voltage | Rated Power | Rated Torque | Rated Speed | Maximum Toque | Maximum Speed | Rated Current | Maximum Current |
| Units | / | VDC | W | N.m | rpm | N.m | rpm | A | A |
| 86BSA071D025C-01 | 4 | 48 | 200 | 27.7 | 62.5 | 50 | 80 | 6.2 | 12 |
| Model | Torque Coefficient | Rotor Intertia | Back E.M.F | Insulation Class | Safety Class | Encoder Type | Environment | Weight |
| Units | N.m/A | Kg*cm² | V/Krpm | Class | IP | °C | Kg | |
| 86BSA071D025C-01 | 6.15 | 0.86 | 10.8 | B | 42 | Photoelectric Encoder | -40°C~50°C | 4.3 |
| OUTLINE MAP |
