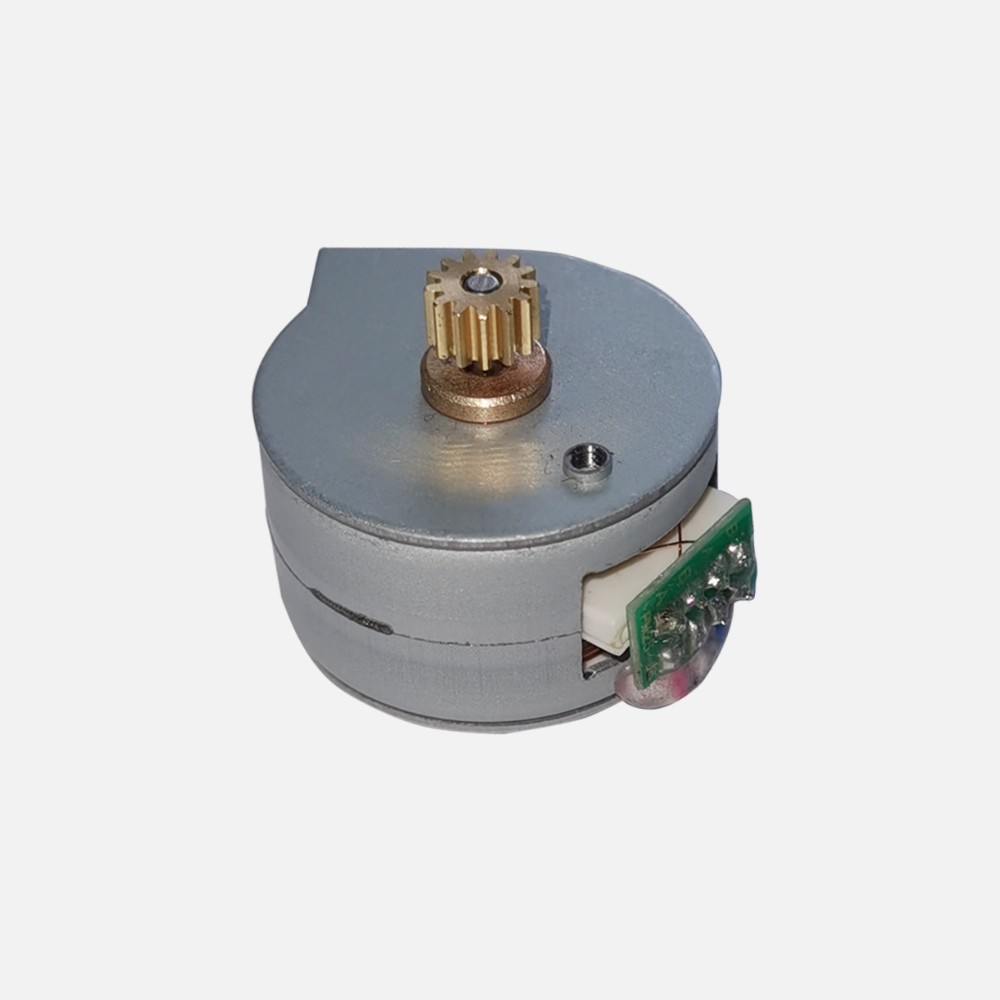

PM MOTOR
| PERFORMANCE DATA |
| Model | Step angel | Exciter type | Drive mode | Voltage | Current/ phase | Resistance/ phase | Inductance/phase | Pull-in torque | Detent torque | Pull-in rate | Noise |
| Units | ° | / | / | VDC | mA | Ω | mH | mN.m | mN.m | pps | dB |
| PM25L-024-06 | 15 | 2-2 | Bipolar | 24 | 300 | 16 | 8 | 3.92 | ≥14.7 | ≥700 | ≤40 |
| OUTLINE MAP |
