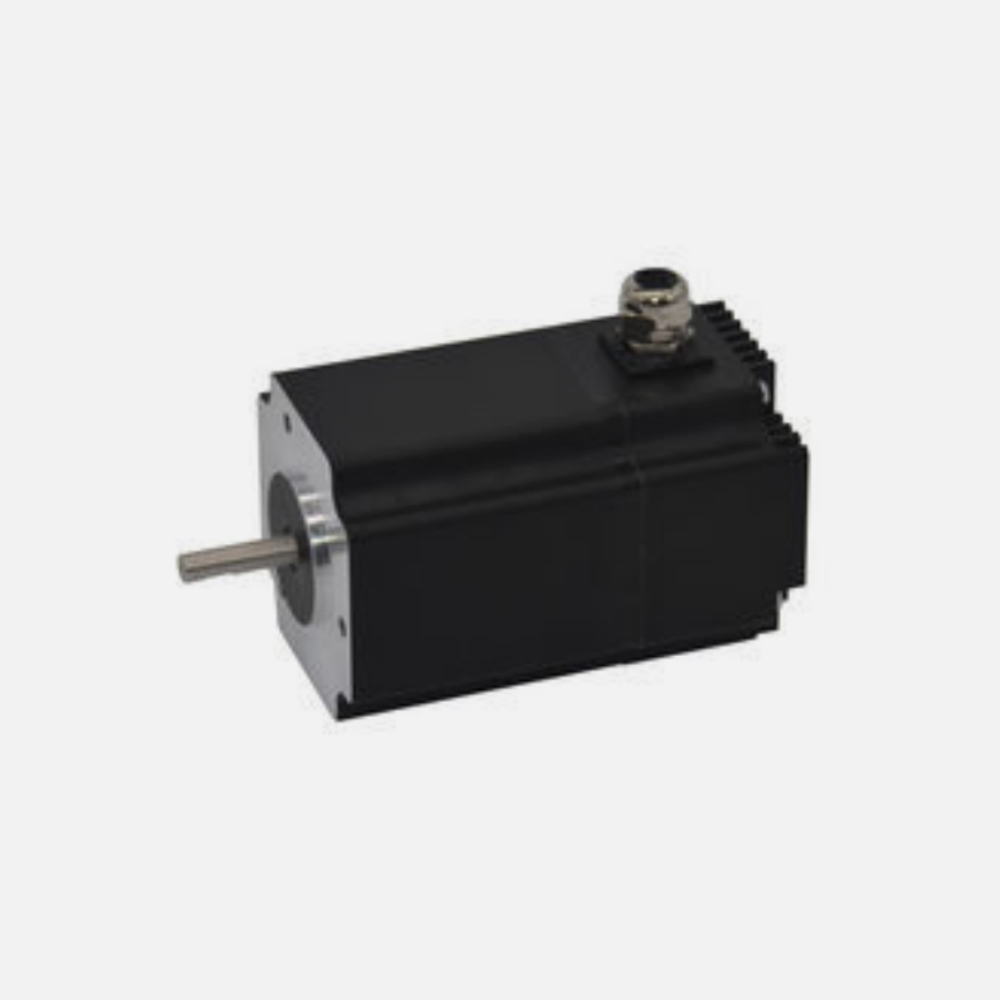

BLDC MOTOR
| PERFORMANCE DATA |
| Model | Number of poles | Number of phase | Rated voltage | Rated speed | Continuous stall torque | Rated torque | Rated power | Peak torque | Peak current | Torque constant | Back E.M.F | Rotor inertia | Body length | Voltage range | Speed Range | Weight |
| Units | / | / | VDC | RPM | N.m | N.m | W | N.m | A | Nm/A | V/KRPM | g.c㎡ | mm | VDC | RPM | Kg |
| 60BSA072B010X-01 | 8 | 3 | 24 | 1000 | 0.32 | 0.32 | 33.5 | 0.96 | 6 | 0.16 | 17.14 | 70 | 72 | 12~310 | 1000~3000 | 0.55 |
| 60BSA092B010X-01 | 1000 | 0.78 | 0.65 | 68 | 1.95 | 12.2 | 0.16 | 17.14 | 140 | 92 | 0.95 | |||||
| 60BSA114B030X-01 | 3000 | 1.2 | 1 | 314 | 3 | 56 | 0.054 | 6 | 210 | 114 | 1.35 |

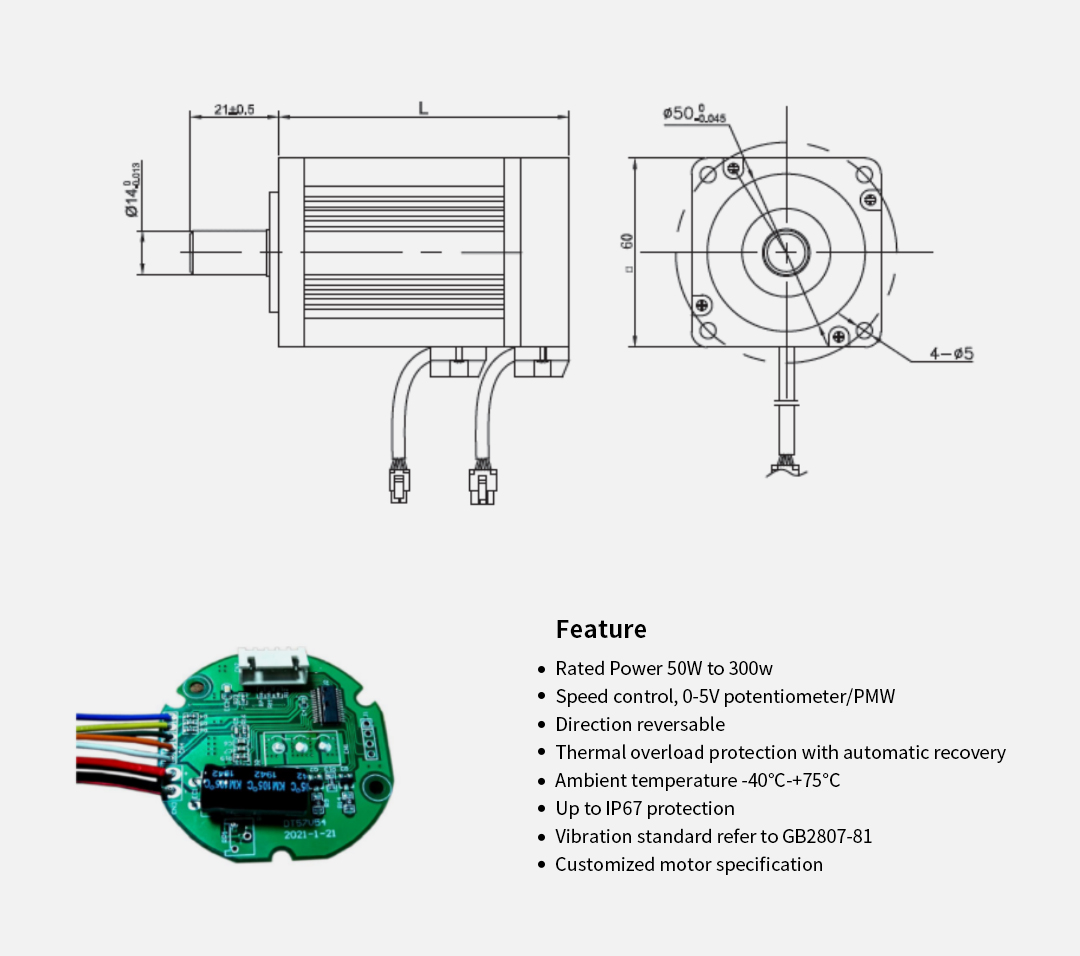

| OUTLINE MAP |
