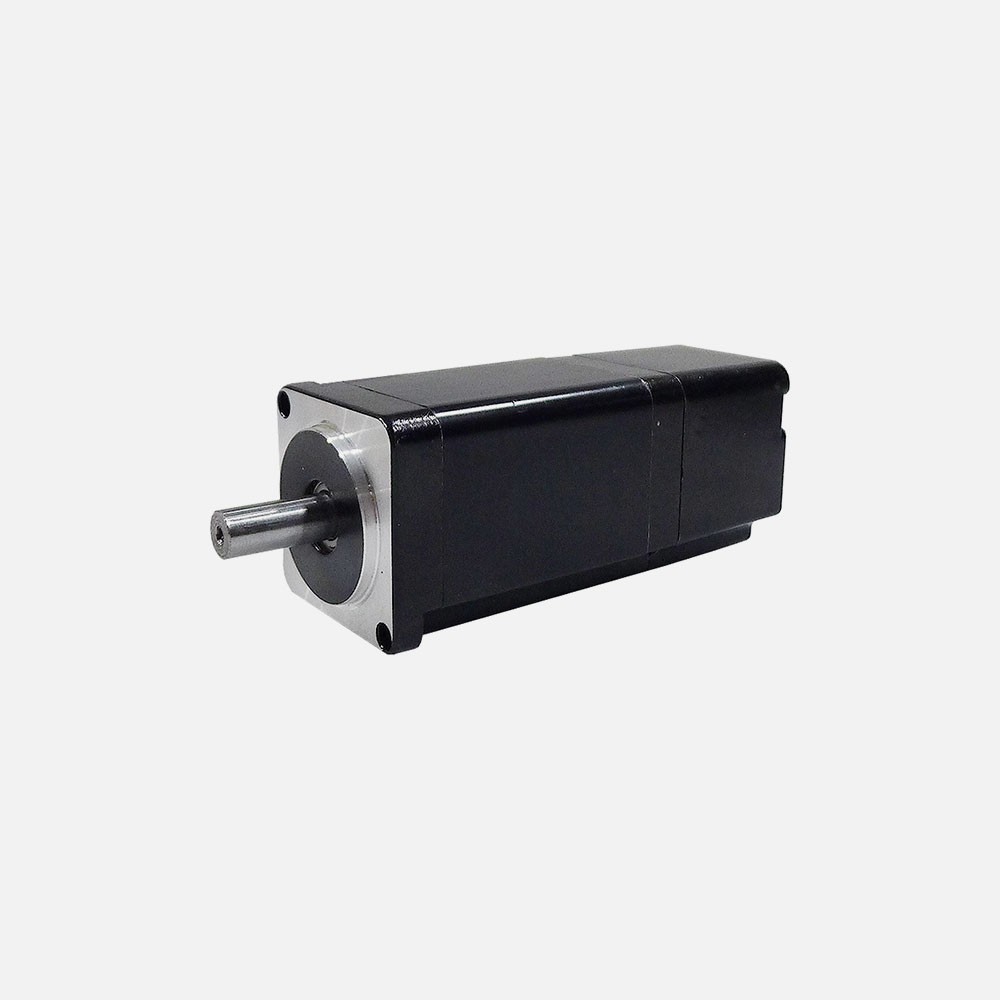

SERVO MOTOR
| PERFORMANCE DATA |
| Model | Poles | Rated voltage | Rated power | Rated torque | Rated speed | Maximum Toque | Rated Current | Maximum Current | Torque Coefficient |
| Units | / | VDC/VAC | W | N.m | rpm | N.m | A | A | N.m/A |
| 40S00230A3EMRD | 5P | 311/220 | 50 | 0.16 | 3000 | 0.48 | 0.7 | 2.25 | 0.265 |
| 40S00430A3EMRD | 5P | 311/220 | 100 | 0.32 | 3000 | 0.96 | 1.4 | 4.2 | 0.265 |
| Model | Rotor Intertia | Back E.M.F | Dielectric Strength | Safety Class | Encoder Type | Environment | Weight | Length |
| Units | Kg*cm² | V/Krpm | / | / | / | / | Kg | mm |
| 40S00230A3EMRD | 0.029 | 22 | 1500V 5mA 1min | IP64 | 2500ppr incremental encoder | -20℃ to 40℃ humidity＜90% | 0.5 | 88 |
| 40S00430A3EMRD | 0.052 | 22 | 1500V 5mA 1min | IP64 | 0.73 | 97 |
| OUTLINE MAP |
